Product

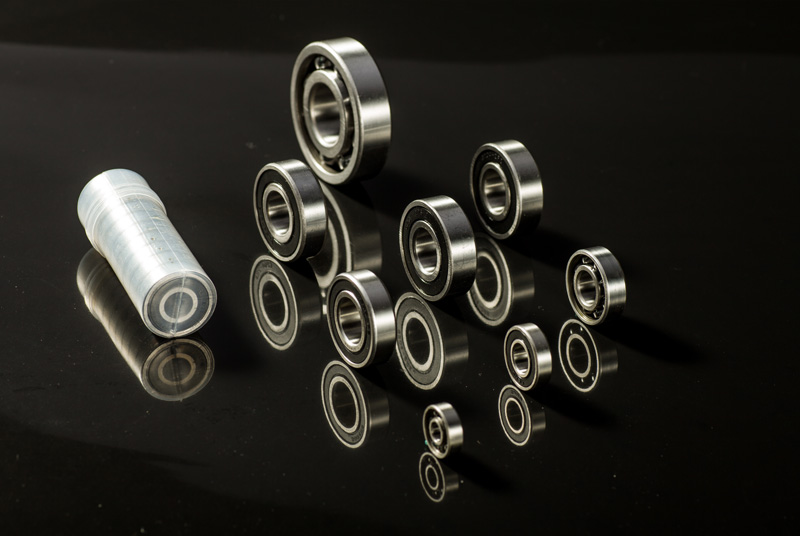

DEEP GROOVE BALL

Product Description

Tollerances of radial bearing inner ring

Accuracy Class d (mm) △dmp Vdp Vdmp Kia Sia Sd △Bs Vbs
Diameter Series Up Low
9 0,1 2,3,4
From To Up Low Max Max Max Max Max Max
P0 (ABEC-1) 2.5 10 0 -8 10 8 6 6 10 - - 0 -120 15
10 18 0 -8 10 8 6 6 10 - - 0 -120 20
18 30 0 -10 13 10 8 8 13 - - 0 -120 20
30 50 0 -12 15 12 9 9 15 - - 0 -120 20
50 80 0 -15 19 19 11 11 20 - - 0 -150 25
P6 (ABEC-3) 2.5 10 0 -7 9 7 5 5 6 - - 0 -120 15
10 18 0 -7 9 7 5 5 7 - - 0 -120 20
18 30 0 -8 10 8 6 6 8 - - 0 -120 20
30 50 0 -10 13 10 8 8 10 - - 0 -120 25
50 80 0 -12 15 15 9 9 10 - - 0 -150 25
P5 (ABEC-5) 2.5 10 0 -5 5 4 4 3 4 7 7 0 -40 5
10 18 0 -5 5 4 4 3 4 7 7 0 -80 5
18 30 0 -6 6 5 5 3 4 8 8 0 -120 5
30 50 0 -8 8 6 6 4 5 8 8 0 -120 5
50 80 0 -9 9 7 7 5 5 8 8 0 -150 6

Tolerance of radial bearing out ring
Accuracy Class D (mm) △Dmp VDp VDmp Kea Sea SO △Cs VCs
Diameter Series
Open Size Capped Up Low
9 0,1 2,3,4 2,3,4
From To Up Low Max Max Max Max Max Max
P0 6 18 0 -8 10 8 6 10 6 15 - - 0 -120 15
18 30 0 -9 12 9 7 12 7 15 - - 0 -120 20
30 50 0 -11 14 11 8 16 8 20 - - 0 -120 20
50 80 0 -13 16 13 9 20 10 25 - - 0 -120 20
80 120 0 -15 19 19 10 26 11 35 - - 0 -150 25
P6 6 18 0 -7 9 7 5 9 5 8 - - 0 -120 15
18 30 0 -8 10 8 6 10 6 9 - - 0 -120 20
30 50 0 -9 11 9 7 13 7 10 - - 0 -120 20
50 80 0 -11 14 11 8 16 8 13 - - 0 -120 25
80 120 0 -13 16 16 10 20 10 18 - - 0 -150 25
P5 6 18 0 -5 5 4 4 - 3 5 8 8 0 -40 5
18 30 0 -6 6 5 5 - 3 6 8 8 0 -80 5
30 50 0 -7 7 5 5 - 4 7 8 8 0 -120 5
50 80 0 -9 9 7 7 - 5 8 10 8 0 -120 6
80 120 0 -10 10 8 8 - 5 10 11 9 0 -150 8

Radial inter clearance
Bearing Hole Size (mm) C2 C0 C3 C4 C5
From To Min Max Min Max Min Max Min Max Min Max
2.5 6 0 7 2 13 8 23 - - - -
6 10 0 7 2 13 8 23 14 29 20 37
10 18 0 9 3 18 11 25 18 33 25 45
18 24 0 10 5 20 13 28 20 36 28 48
24 30 1 11 5 20 13 28 23 41 30 53
30 40 1 11 6 20 15 33 28 46 40 64


Bearing Vibration
Bearing Hole Size Vibration (Acceleration) : db Vibration (Speed) : u m/s
Diameter Series 0 Diameter Series 2 Diameter Series 3 V1 V2 V3 V4
(mm) Z Z1 Z2 Z3 Z Z1 Z2 Z3 Z Z1 Z2 Z3 Low Medium High Low Medium High Low Medium High Low Medium High
5 37 36 34 30 38 37 34 32 39 37 35 33 74 48 40 58 36 30 35 21 18 32 11 11
6 37 36 34 30 38 37 34 32 39 37 35 33 74 48 40 58 36 30 35 21 18 32 11 11
7 39 38 35 31 40 38 36 34 - - - - 92 66 54 72 48 40 44 28 24 38 12 12
8 39 38 35 31 40 38 36 34 - - - - 92 66 54 72 48 40 44 28 24 38 12 12
9 41 40 36 32 42 40 37 35 - - - - 92 66 54 72 48 40 44 28 24 38 12 12
10 43 42 38 33 44 42 39 35 46 44 40 37 120 80 70 90 60 50 55 35 30 45 14 14
12 44 43 39 34 45 43 39 35 47 45 40 37 120 80 70 90 60 50 55 35 30 45 14 14
15 45 44 40 35 46 44 41 36 48 46 42 38 150 110 85 110 78 60 65 46 35 52 18 18
17 46 44 40 35 47 45 41 36 49 47 42 38 150 110 85 110 78 60 65 46 35 52 25 25
20 47 45 41 36 48 46 42 38 50 48 43 39 180 125 100 130 100 75 80 60 45 60 30 32
25 48 46 42 38 49 47 43 40 51 49 44 41 180 125 100 130 100 75 80 60 45 60 30 32
28 49 47 43 39 50 48 44 41 52 50 45 42 180 125 100 130 100 75 80 60 45 60 35 40
30 49 47 43 39 50 48 44 41 52 50 45 42 200 150 130 150 120 100 90 75 60 70 35 40
32 50 48 44 40 51 49 45 42 53 51 46 43 200 150 130 150 120 100 90 75 60 70 35 40
35 51 49 45 41 52 50 46 43 54 52 47 44 200 150 130 150 120 100 90 75 60 70 42 45
40 53 51 46 42 54 52 47 44 56 54 49 45 240 180 160 180 150 130 110 90 80 82 50 50
45 55 53 48 45 56 54 49 46 58 56 51 47 240 180 160 180 150 130 110 90 80 82 60 60
50 57 54 50 47 58 55 51 48 60 57 53 49 280 200 200 210 160 160 125 100 100 95 70 70
BEARING NUMBER Bore d Outer Diameter D Width W Basic Load Rating Weight
mm in. mm in. mm in. Dynamic Cr(N) Static Cor(N) lbs.
6000 10 0.3937 26 1.0236 8 0.315 3510 1950 0.042
6001 12 0.4724 28 1.1024 8 0.315 3930 2230 0.046
6002 15 0.5906 32 1.2598 9 3.543 4300 2510 0.057
6003 17 0.669 35 1.378 10 0.3937 5230 3040 0.079
6004 20 0.7874 42 1.6535 12 0.4724 7210 4460 0.152
6005 25 0.9843 47 1.8504 12 0.4724 7740 4960 0.165
6006 30 1.1811 55 2.1654 13 0.5118 10200 6910 0.198
6007 35 1.378 62 2.4409 14 0.5112 12300 8530 0.352
6008 40 1.5748 68 2.6772 15 0.5906 12900 9300 0.447
6009 45 1.7717 75 2.9528 16 0.6299 15300 11300 0.528
6010 50 1.9685 80 3.1493 16 0.6299 16000 12000 0.617
6011 55 2.1654 90 3.5433 18 0.7087 21700 17000 0.837
6012 60 2.3622 95 3.7402 18 0.7087 23600 18200 0.903
6200 10 0.3937 30 1.1811 9 0.3543 4600 2620 0.066
6201 12 0.4724 32 1.2598 10 0.3937 4700 2660 0.081
6201/1/2 12.7 0.5 32 1.2598 10 0.3937 4700 2660 0.081
6201-13 13 0.5118 32 1.2598 10 0.3937 4700 2660 0.081
6202 15 0.5906 35 1.378 11 0.4331 5860 3490 0.101
6202/1/2 12.7 0.5 35 1.378 11 0.4331 5860 3480 0.101
6202/5/8 15.875 0.625 35 1.378 11 0.4331 5860 3480 0.09
6202-16 16 0.6299 35 1.378 11 0.4331 5860 3480 0.09
6203 17 0.6693 40 1.5748 12 0.4724 7390 4390 0.143
6203/3/8 9.525 0.375 40 1.5748 12 0.4724 7350 4410 0.163
6203/1/2 12.7 0.5 40 1.5748 12 0.4724 7350 4410 0.153
6203-15 15 0.5906 40 1.5748 12 0.4724 7350 4410 0.148
6203/5/8 15.875 0.625 40 1.5748 12 0.4724 7350 4410 0.14
6203-16 16 0.6299 40 1.5748 12 0.4724 7350 4410 0.15
6203/3/4 19.05 0.75 40 1.5748 12 0.4724 7350 4410 0.13
6204 20 0.7874 47 1.8504 14 0.5112 9820 6200 0.236
6204/3/4 19.05 0.75 47 1.8504 14 0.5112 9800 6180 0.246
6204/7/8 22.225 0.875 47 1.8504 14 0.5112 9800 6180 0.23
6205 25 0.9843 52 2.0472 15 0.5906 10800 6980 0.295
6205/1/1 25.4 1 52 2.0472 15 0.5906 10800 6960 0.295
6206 30 1.1811 62 2.4409 16 0.6299 15000 10000 0.445
6207 35 1.378 72 2.8346 17 0.6693 19700 13700 0.634
6208 40 1.5748 80 3.1496 18 0.0787 25100 17900 0.815
6209 45 1.7717 85 3.3465 19 0.748 25800 18500 0.898
6210 50 1.9385 90 3.5433 20 0.7848 27000 19800 1.006
6211 55 2.1654 100 3.937 21 0.8268 33300 21100 1.326
6212 60 2.3622 110 4.3307 22 0.8661 40300 31100 1.762
6300 10 0.3937 35 1.378 11 0.4331 6230 3770 0.108
6301 12 0.4724 37 1.4567 12 0.4724 7470 4650 0.13
6302 15 0.5906 42 1.6535 13 0.5118 8730 5430 0.181
6303 17 0.6693 47 1.8504 14 0.5512 10700 6700 0.247
6304 20 0.7874 52 2.0472 15 0.5906 12300 7810 0.428
6305 25 0.9843 62 2.4409 17 0.6693 17200 11400 0.504
6306 30 1.1811 72 2.8346 19 0.748 21700 14900 0.766
6307 35 1.378 80 3.1496 21 0.8268 25700 17900 0.958
6308 40 1.5748 90 3.5433 23 0.9055 31300 22400 1.4
6309 45 1.7717 100 3.937 25 0.9843 37100 26300 1.817
6310 50 1.9685 110 4.3307 27 1.063 47500 35700 2.378
6311 55 2.1654 120 4.7244 29 1.1417 55000 41900 2.995
6312 60 2.3622 130 5.1181 31 1.2205 62900 48600 3.809
6403 17 0.6693 62 2.4409 17 0.6693 17500 11900 0.5
6404 20 0.7874 72 2.8346 19 0.748 28500 13900 0.9
6405 25 0.9843 80 3.1496 21 0.8268 34500 17500 1.19
6406 30 1.1811 90 3.5433 23 0.9055 36400 26800 1.59
6407 35 1.378 100 3.937 25 0.9843 42700 31400 2.06
6408 40 1.5748 110 4.3307 27 1.063 49300 36500 2.69
6409 45 2.7717 120 4.7244 29 1.1417 59200 45600 3.41
6410 50 1.9685 130 5.1181 31 1.2205 71000 55500 4.2

Inch series
BEARING NUMBER Bore d （Inch) Outer Diameter D (Inch) Width B (Inch) Basic Load Rating
d D B B1 Dynamic Cr(N) Static Cor(N)
R2 0.1250 0.3750 0.1562 0.1562 73 29
R2A 0.1250 0.5000 0.1719 0.1719 73 29
R3 0.1875 0.5000 0.1562 0.1960 148 64
R4 0.2500 0.6250 0.1960 0.1960 168 77
R4A 0.2500 0.7500 0.2188 0.2812 405 198
R6 0.3750 0.8750 0.2188 0.2812 575 305
R8 0.5000 1.1250 0.2500 0.3125 885 505
R10 0.6250 1.3750 0.2812 0.3438 1040 620
R12 0.7500 1.6250 0.3125 0.4375 1620 1030
R14 0.8750 1.8750 0.3750 0.5000 1740 1160
R16 1.0000 2.0000 0.3750 0.5000 1740 1160
1601 0.1875 0.6875 0.2500 0.3125 294 146
1602 0.2500 0.6875 0.2500 0.3125 294 146
1603 0.3125 0.8750 0.2812 0.3438 464 228
1604 0.3750 0.8750 0.2812 0.3438 464 228
1605 0.3125 0.9062 0.3125 0.3125 464 228
1606 0.3750 0.9062 0.3125 0.3125 464 228
1607 0.4375 0.9062 0.3125 0.3125 400 229
1614 0.3750 1.1250 0.3750 0.3750 400 229
1615 0.4375 1.1250 0.3750 0.3750 400 229
1616 0.5000 1.1250 0.3750 0.3750 400 229
1620 0.4375 1.3750 0.4375 0.4375 600 354

BEARING NUMBER Bore d （mm) Outer Diameter D (mm) Width B (mm) Basic Load Rating
d D B B1 Dynamic Cr(N) Static Cor(N)
684 Open / ZZ and 2RS 4 9 2.5 4.0 640 225
694 Open / ZZ and 2RS 4 11 4.0 4.0 960 345
604 Open / ZZ and 2RS 4 12 4.0 4.0 960 345
624 Open / ZZ and 2RS 4 13 5.0 5.0 1300 485
634 Open / ZZ and 2RS 4 16 5.0 5.0 1730 670
685 Open / ZZ and 2RS 5 11 3.0 5.0 715 281
695 Open / ZZ and 2RS 5 13 4.0 4.0 1080 430
605 Open / ZZ and 2RS 5 14 5.0 5.0 1330 505
625 Open / ZZ and 2RS 5 16 5.0 5.0 1730 670
635 Open / ZZ and 2RS 5 19 6.0 6.0 2340 885
686 Open / ZZ and 2RS 6 13 3.5 5.0 1080 440
696 Open / ZZ and 2RS 6 15 5.0 5.0 1073 670
606 Open / ZZ and 2RS 6 17 6.0 6.0 2260 835
626 Open / ZZ and 2RS 6 19 6.0 6.0 2340 885
636 Open / ZZ and 2RS 6 22 7.0 7.0 330 1370
687 Open / ZZ and 2RS 7 14 3.5 5.0 1170 510
697 Open / ZZ and 2RS 7 17 5.0 5.0 1610 710
607 Open / ZZ and 2RS 7 19 6.0 6.0 2340 885
627 Open / ZZ and 2RS 7 22 7.0 7.0 330 1370
637 Open / ZZ and 2RS 7 26 9.0 9.0 4050 1620
688 Open / ZZ and 2RS 8 16 4.0 5.0 1260 590
698 Open / ZZ and 2RS 8 19 6.0 6.0 2240 910
608 Open / ZZ and 2RS 8 22 7.0 7.0 3300 1370
628 Open / ZZ and 2RS 8 24 8.0 8.0 3350 1430
638 Open / ZZ and 2RS 8 28 9.0 9.0 4550 1970
689 Open / ZZ and 2RS 9 17 4.0 5.0 1330 665
699 Open / ZZ and 2RS 9 20 6.0 6.0 1720 840
609 Open / ZZ and 2RS 9 24 7.0 7.0 3350 1430
629 Open / ZZ and 2RS 9 26 8.0 8.0 4550 1970
639 Open / ZZ and 2RS 9 30 10.0 10.0 5100 2390
